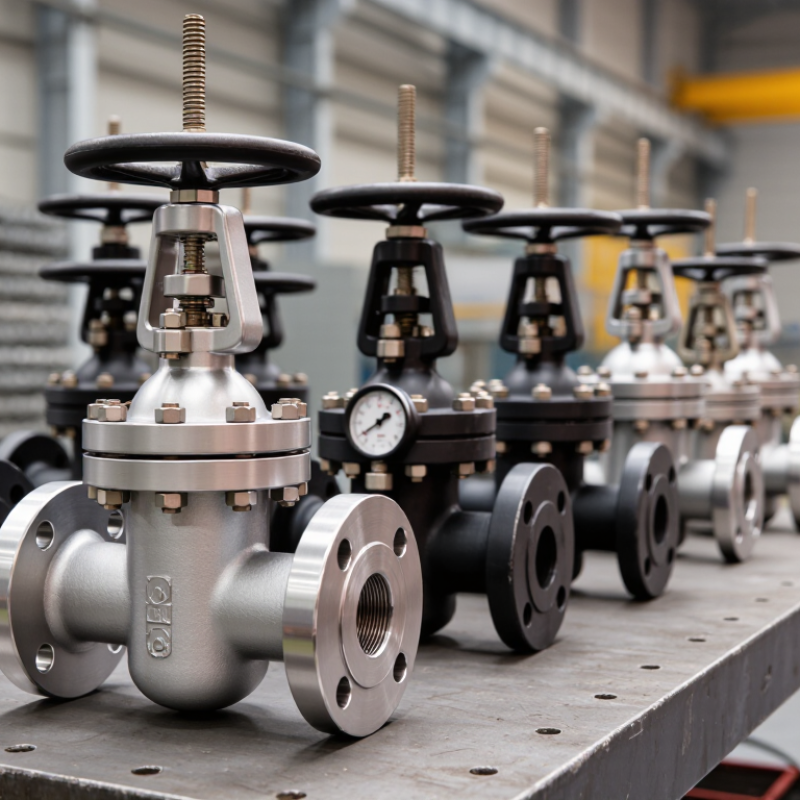

How to Choose High Pressure Valves for Global Sourcing?

Choosing high pressure valves for global sourcing requires more than comparing catalog prices. The correct valve must match pressure, temperature, media, connection type, and operating frequency. A small mismatch can cause leakage, unstable control, or costly shutdowns.

Start with the service conditions. Record the maximum working pressure, design temperature, fluid properties, flow rate, and installation environment. Specify whether the valve handles water, steam, gas, oil, or corrosive chemicals. Material selection matters. Stainless steel may suit demanding environments, while carbon steel can offer practical value under controlled conditions.

Supplier capability also deserves close attention. Request pressure-test records, material certificates, dimensional drawings, and traceable serial numbers. Review manufacturing experience, inspection procedures, and replacement-part availability. Standards such as API, ASME, ISO, or regional requirements may apply, but acceptance depends on the project and destination market. Confirm the exact edition and certification scope.

Do not rely on photographs alone.

A reliable sourcing process includes sample evaluation, factory communication, and independent inspection when risk justifies the cost. Ask how each valve is tested before shipment. Check packaging, preservation, labeling, and documentation for long-distance transport. These details often reveal whether a supplier understands real field conditions.

Price can mislead. A cheaper valve may require special adapters, frequent maintenance, or urgent replacement. However, premium pricing is not proof of quality. That assumption needs testing. Compare total ownership cost, lead time, technical support, and verified performance.

Experienced buyers still make mistakes. Specifications change late, documents arrive incomplete, or a trusted supplier misses a delivery date. Build room for review, clarification, and corrective action. Careful decisions create safer, more predictable global sourcing outcomes.

How to Choose High Pressure Valves for Global Sourcing?
Table of Contents [Hide]
1 Define Pressure, Temperature, Media, and Compliance Needs (ASME Classes 150–2500)
2 Match Valve Design to Service: Gate, Globe, Ball, and Check Valves
3 Verify Ratings with ASME B16.34, API 6A (2,000–20,000 psi), and PED
4 Audit Materials and Testing: NACE MR0175, ISO 5208, and MTR Traceability
5 Compare Suppliers by Lead Time, Incoterms, Certifications, and Total Cost

Define Pressure, Temperature, Media, and Compliance Needs (ASME Classes 150–2500)

Choosing high-pressure valves for global sourcing starts with four fields: pressure, temperature, media, and compliance. ASME B16.34 Classes 150–2500 are pressure-temperature ratings, not universal pressure limits. Ratings change with body material, temperature, and design. A Class 600 valve may outperform a Class 900 valve in hot, corrosive service. I verify design pressure, operating pressure, surge pressure, and shutoff differential separately. Mixing them creates costly mistakes.

Media data should include concentration, viscosity, solids, toxicity, and corrosion potential. Sour gas may require materials qualified under ISO 15156. Fugitive emissions also matter. The IEA’s Global Methane Tracker 2024 estimates that around 40% of fossil-fuel methane emissions could be avoided at no net cost. That makes stem sealing and emissions testing practical sourcing criteria. For cryogenic service, check low-temperature toughness, extended bonnets, and thermal cycling. A perfect datasheet is rare. I still question clean numbers without test evidence.

Tips: Create a valve schedule with pressure, temperature, media, class, material, end connection, testing, and certificates. Confirm ratings against the actual ASME tables. Request hydrostatic and functional test records, material certificates, and traceable serial numbers. Check API 6D or ISO 15848-1 requirements when applicable. Ask whether local installation rules require additional conformity documents. Cheap procurement can become expensive after installation.

Match Valve Design to Service: Gate, Globe, Ball, and Check Valves

How to Choose High Pressure Valves for Global Sourcing?

High pressure valve selection should begin with the service, not the supplier catalog. Gate valves suit fully open or fully closed pipelines. Their straight flow path reduces pressure loss. They are poor choices for regular throttling. A partly open gate can suffer vibration, erosion, and seat damage.

Globe valves provide better flow control. Their shaped body creates more resistance, but this supports stable throttling. Check the pressure drop before specifying them.

Ball valves use a quarter-turn mechanism and usually provide fast, tight shutoff. They work well where space and operating speed matter. For high-temperature service, confirm seat materials and thermal expansion limits. A trapped cavity can also create pressure concerns in certain systems.

Check valves prevent reverse flow without continuous operator action. Swing, lift, and spring-loaded designs respond differently to flow speed and installation position. A badly matched check valve may slam shut. It may also create harmful water hammer.

For global sourcing, compare pressure-temperature ratings, body materials, pressure classes, and end connections line by line. Ask for material certificates, inspection records, and pressure-test results. Verify that documents match the actual heat number and valve marking.

Applicable standards should fit the destination market and project specification. Do not treat every certificate as proof of performance. Supplier audits, sample inspection, and traceable testing remain valuable.

One practical weakness is relying too heavily on datasheets. Real piping conditions, startup cycles, dirty media, and maintenance access can change the correct choice. A short technical review with process and maintenance teams often prevents an expensive mismatch.

Verify Ratings with ASME B16.34, API 6A (2,000–20,000 psi), and PED

Choosing high pressure valves for global sourcing starts with verified ratings, not a supplier’s headline. ASME B16.34 helps confirm pressure-temperature ratings, materials, wall thickness, and design requirements. Check the exact valve configuration, because a familiar class rating may change with temperature or trim materials. Small details matter.

For oilfield and well-control applications, API 6A may define pressure levels from 2,000 to 20,000 psi. Match the valve’s rated working pressure to the actual service pressure, not the average reading. Review body and bonnet materials, connection dimensions, temperature limits, and pressure-test records. Ask for traceable certificates and inspection results. A clear serial-number trail is useful when documents arrive from several countries. I have seen purchasing files that looked complete but lacked test temperatures.

PED compliance requires a separate review for equipment entering applicable European markets. Confirm the relevant conformity route, essential safety requirements, technical file, and declaration of conformity. The valve’s category depends on pressure, fluid group, size, and equipment type. Do not accept a generic “PED approved” statement without supporting documents. Check markings, instructions, and language requirements before shipment.

Keep a comparison sheet for every quotation. Record the standard edition, pressure range, materials, testing scope, and certificate references. Then ask an independent inspector to verify critical dimensions and test evidence. This step can feel slow. It is often cheaper than correcting a rejected shipment or an unsafe specification. One weakness remains: standards do not replace engineering judgment, especially when pressure cycles, sour service, or unusual temperatures are involved.

How to Choose High Pressure Valves for Global Sourcing? - Verify Ratings with ASME B16.34, API 6A (2,000–20,000 psi), and PED

Verification Dimension ASME B16.34 API 6A PED 2014/68/EU Recommended Sourcing Evidence
Primary purpose Design, materials, pressure-temperature ratings, examination, testing, and marking requirements for industrial valves. Requirements for wellhead and Christmas-tree equipment used in oil and gas production, including valves and pressure-containing components. European Union legal framework for pressure equipment with maximum allowable pressure above 0.5 bar. Request the applicable edition, scope statement, certificate, and a clause-by-clause compliance matrix.
Pressure designation Uses pressure-temperature ratings by material group, valve class, and temperature; Class 150 through Class 2500 are commonly used. Uses nominal working pressure classes of 2,000, 3,000, 5,000, 10,000, 15,000, and 20,000 psi. Uses PS, the maximum allowable pressure, together with DN, fluid group, temperature, and equipment category. Confirm that the stated rating is working pressure at the specified temperature—not only a test pressure or nominal designation.
Typical pressure range Depends on the pressure class and material. The allowable pressure decreases as temperature increases. 2,000–20,000 psi nominal working-pressure classes are specified for applicable wellhead and Christmas-tree equipment. No single universal pressure class; conformity depends on the equipment’s PS and the applicable PED tables or assessment route. Ask for a pressure-temperature chart, design pressure, design temperature, and proof-test pressure for the exact valve configuration.
Temperature verification Required. Rating must be selected from the applicable material group and temperature table. Temperature rating is linked to the equipment design, material, elastomers, service conditions, and applicable API requirements. The manufacturer must define allowable limits and demonstrate conformity for the intended operating conditions. Compare minimum and maximum design temperatures, operating temperature, thermal cycling, and seal limitations.
Valve type and application Commonly applied to gate, globe, check, ball, and butterfly valves within its scope. Focused on wellhead and Christmas-tree equipment, including gate valves, through-conduit gate valves, and related pressure-control equipment. Applies to pressure equipment and assemblies, subject to exclusions and the PED classification rules. Match valve type, bore, end connection, flow direction, actuation, fail position, and installation orientation to the process specification.
Material and corrosion control Materials and material groups affect allowable pressure-temperature ratings and construction compliance. Requires suitable pressure-containing materials and documentation for the specified service; sour service may require additional requirements such as NACE MR0175/ISO 15156 where applicable. Materials must be suitable for the intended service and supported by the required technical documentation. Verify material grade, heat numbers, chemical analysis, mechanical tests, hardness, coating, and corrosion allowance using traceable records.
Pressure and leakage tests Includes pressure-testing provisions for valves, including shell and closure testing as applicable. Includes performance, pressure, and functional test requirements applicable to the equipment type and pressure class. Requires conformity assessment and appropriate testing before placing pressure equipment on the EU market. Obtain signed test reports showing test medium, test pressure, hold time, leakage result, calibrated instruments, and acceptance criteria.
End connections Flanged, threaded, and welded-end dimensions and requirements depend on the applicable design standard and valve configuration. Wellhead and Christmas-tree connections are selected according to the applicable API 6A flange, hub, outlet, or other connection requirements. PED does not replace dimensional connection standards; the complete pressure-equipment design must remain compatible with the installation. Check bore size, flange or hub specification, pressure class, face-to-face dimension, bolt pattern, gasket type, and interchangeability.
Sour and hazardous service Does not by itself define complete sour-service qualification for every application. May be specified with sour-service requirements when hydrogen sulfide exposure and applicable material restrictions are relevant. Hazard classification and essential safety requirements apply according to the fluid group and equipment category. State H2S exposure, chloride level, temperature, pressure cycling, fire requirements, and required material qualification before quotation.
PED classification checkpoint Not a European conformity directive; it may be used as a technical design standard where contractually accepted. Not a substitute for PED conformity when the equipment is placed on the EU market. Determine fluid Group 1 or Group 2, gas or liquid state, DN, PS, and the applicable conformity category or Article 4(3) sound-engineering-practice route. Request the PED category, conformity-assessment procedure, EU Declaration of Conformity, notified-body documents where applicable, and CE marking evidence.
Marking and traceability Valve marking should identify relevant design and rating information required by the standard. Equipment marking and identification support rating, configuration, manufacturing, and service traceability. CE marking and required information apply when the equipment falls within the directive’s conformity requirements. Ensure body marking, nameplate, serial number, heat number, pressure class, size, material, and documentation all correspond.
Global sourcing decision rule Use when the valve requires an industrial pressure-temperature rating and standardized design and testing basis. Use for applicable wellhead and Christmas-tree equipment requiring 2,000–20,000 psi nominal working-pressure classes. Use for EU market access when the pressure equipment falls within the directive’s scope. Select the valve only after all three questions are answered: Is the pressure rating correct? Is the service compatible? Is the destination-market conformity complete?
Supplier document checklist: Approved datasheet, pressure-temperature rating chart, applicable standard editions, dimensional drawing, material certificates, heat-treatment records, non-destructive examination reports, pressure-test reports, leakage-test results, calibration certificates, inspection and test plan, conformity certificates, and complete serial-number traceability.

Audit Materials and Testing: NACE MR0175, ISO 5208, and MTR Traceability

How to Choose High Pressure Valves for Global Sourcing?

When sourcing high pressure valves globally, audit evidence matters as much as the valve design. Ask whether materials meet NACE MR0175 requirements for sour service. Review hardness limits, material grades, heat treatment, and environmental restrictions. A certificate alone is not enough.

Request complete Material Test Reports, or MTRs, with matching heat numbers. The heat number should appear on the valve body, trim, and packing records. Check chemical composition, mechanical results, and manufacturing origin. Trace every component through cutting, machining, assembly, and final inspection. Missing links create avoidable risk.

In practical audits, unclear stamping is a common weakness. It deserves attention before shipment.

ISO 5208 testing should show the pressure, duration, medium, and permitted leakage rate. Confirm that test gauges were calibrated during testing. Ask for test charts, inspection signatures, and clear photographs of nameplates. Independent witnessing can strengthen reliability, especially for unfamiliar suppliers.

Tips: Compare MTRs against purchase specifications line by line. Verify heat numbers physically. Keep approved deviations visible. Do not accept copied reports. They look efficient, but they may hide errors. A perfect file is unusual. Reviewers should still question inconsistencies, even small ones.

Compare Suppliers by Lead Time, Incoterms, Certifications, and Total Cost

How to Choose High Pressure Valves for Global Sourcing?

Lead time should be measured from approved drawings, not from the first quotation. Ask when materials are available, when testing is scheduled, and when packing is complete. A valve promised in four weeks may require eight after inspection delays. That gap matters. Request a production schedule with milestone dates and recent delivery records. I have found that honest suppliers disclose capacity limits instead of offering perfect timelines.

Compare Incoterms carefully. Under EXW, the buyer may arrange loading, export clearance, inland transport, and insurance. Under DAP, the supplier usually manages more transport, but import duties may remain your responsibility. Obtain matching quotes with the same destination, pressure class, actuator configuration, and packing requirements. Otherwise, the lowest price is often misleading. Include freight, duties, inspection fees, spare parts, and possible rework in the total cost.

Certifications must match the valve design and destination market. Check material certificates, pressure-test reports, calibration records, and traceability from heat number to final unit. Independent inspection can verify dimensions, markings, and test performance before shipment. Do not accept copied certificates without verification. A factory audit may reveal weak document control or crowded test areas. My own comparison sheets are useful, but they are not infallible; exchange-rate changes and port congestion can still disturb the final calculation.
