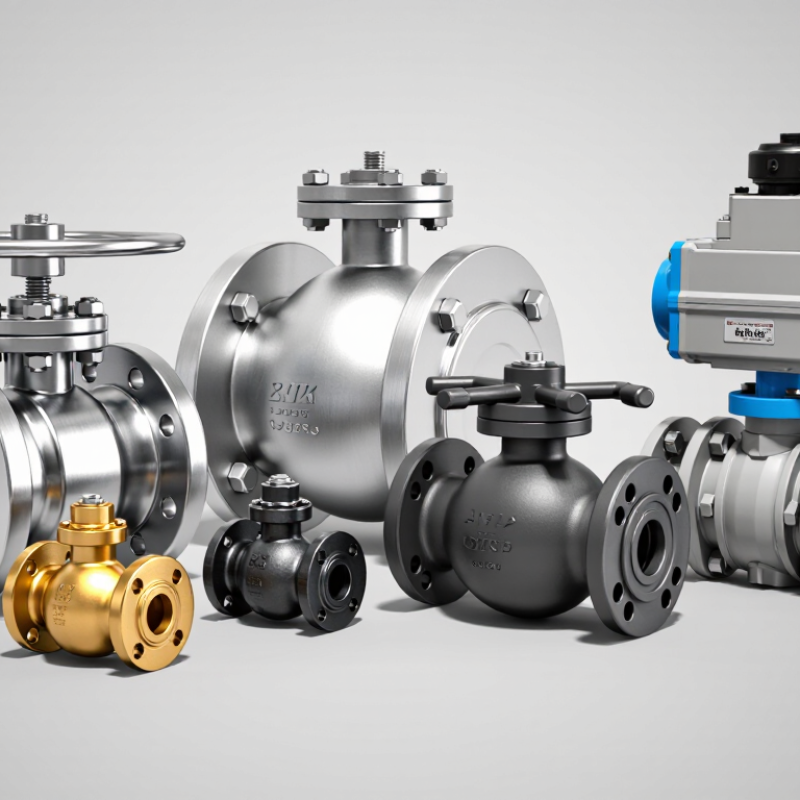

How to Choose the Right Ball Valves for Your Needs?
Choosing the right ball valves starts with understanding the system, not simply matching pipe size. A valve that fits the line may still fail under unsuitable pressure, temperature, or chemical exposure. Consider the fluid first. Water, compressed air, steam, oil, and corrosive chemicals can require very different body and seal materials. Stainless steel may suit demanding environments, while brass or carbon steel can serve less aggressive applications. Check the manufacturer’s pressure and temperature ratings carefully. Never rely on appearance alone.
Connection type also matters. Threaded, flanged, welded, and sanitary ends each support different installation needs. A compact threaded ball valve may work well beneath a sink, but a flanged design is often more practical on larger industrial piping. Full-port valves reduce flow restriction. Reduced-port models may cost less and fit tighter spaces. Decide whether manual operation is enough or automation is necessary. Electric and pneumatic actuators require compatible torque, control signals, and maintenance access.
Small details matter.
In real projects, selection errors often come from overlooked conditions. A valve may handle normal pressure but struggle during pressure surges. A seal may perform well at room temperature but deteriorate in a heated process line. Review operating cycles, shutoff requirements, available space, and future servicing plans. Compare technical datasheets from reputable manufacturers, and confirm specifications with a qualified engineer when the application is critical. This guide explains how to evaluate ball valves with practical judgment. Some choices are not obvious, and assumptions deserve a second look.
Identify the Application Requirements for Your Ball Valve
Choosing a ball valve starts with the application, not the pipe size. Write down the fluid, operating pressure, temperature, flow rate, and line size. A valve carrying clean water may need different materials than one handling corrosive chemicals. Check whether the medium contains particles, because debris can damage seats and prevent tight shutoff. This small detail is often missed. It matters.
In field inspections, I have seen valves selected by diameter alone. They fitted the pipe, but failed under heat or frequent cycling. Compare the valve’s pressure and temperature ratings with real operating conditions, not ideal figures. Allow for pressure spikes during pump startup and sudden closure. For abrasive or dirty service, ask whether the seat and body materials can tolerate repeated contact. Do not guess. Review the relevant piping, pressure, and safety requirements for your location.
Decide how the valve will operate. Manual handles suit accessible lines with occasional adjustment, while actuators help with remote or frequent control. Confirm the connection type, installation space, fire-safe needs, and required leakage performance. If maintenance access is limited, inspectable components and a clear replacement plan become important. I would also question whether a full-port design is truly necessary; it may add cost without improving the process. That trade-off deserves a second look. Record the selected materials, ratings, and test requirements before ordering.
How to Choose the Right Ball Valves for Your Needs?
Identify the application requirements first: operating temperature, pressure, media compatibility, flow size, and connection type. The chart shows indicative continuous temperature ranges for commonly used ball-valve seat materials. Actual limits depend on valve design, pressure, chemicals, and manufacturer specifications.
PTFE is widely used for general chemical and water service, reinforced PTFE provides improved temperature capability, PEEK is suitable for higher-temperature and demanding applications, and metal seats are selected for extreme temperatures or abrasive service. Always verify pressure-temperature ratings and media compatibility before selection.
Compare Ball Valve Materials, Designs, and Port Configurations
Choosing the right ball valve starts with the fluid, not the pipe size. I have seen valves fail because corrosion was treated as an afterthought. Brass suits many clean, moderate-temperature services. Stainless steel handles moisture and several corrosive fluids more confidently. Carbon steel offers strength and value, but it needs suitable protection. Check the fluid’s chemistry, temperature, pressure, and cleanliness before comparing materials. Seat material matters too. PTFE works well in many applications, while reinforced or high-temperature seats may perform better under demanding conditions.
Valve design affects control and maintenance. A floating ball valve uses line pressure to press the ball against its seat. It is often practical for smaller, lower-pressure systems. A trunnion-mounted design supports the ball with additional bearings. This can reduce operating torque in larger or higher-pressure lines. Two-way valves isolate flow, while three-way designs redirect or mix it. The wrong flow pattern can create expensive installation problems. Measure twice.
Port configuration also changes performance. A full-port valve keeps the internal opening close to the pipe diameter. It reduces pressure loss and helps cleaning tools pass through. A reduced-port valve is usually more compact and economical. However, it creates greater flow resistance. Threaded connections suit compact installations and moderate service conditions. Flanged connections simplify removal and inspection. Welded connections provide strong, permanent joints, but maintenance becomes more difficult. Confirm pressure ratings, leakage limits, and applicable testing requirements before purchase. Small details often decide long-term reliability.
Match Valve Size, Pressure Rating, and Temperature Range
Choosing the right ball valve starts with three numbers: line size, pressure rating, and temperature range. Measure the pipe connection, not just the outside diameter. A valve that is too small can restrict flow and create unwanted pressure loss. One that is too large may cost more and respond poorly at low flow. In field work, I have seen catalogs confuse nominal size with actual bore. Check the connection standard and full-bore or reduced-bore design before ordering.
Pressure rating must match the maximum operating pressure, including startup surges and thermal expansion. Do not select a valve from normal pressure alone. For steam, compressed gas, or hydraulic service, verify the rating at the working temperature. Pressure classes can change as temperature rises. Use the pressure-temperature chart and leave a sensible safety margin. This is where rushed selections often fail. I once treated a comfortable gauge reading as proof of safety; it was not.
Temperature affects both the body and the seals. A valve rated for hot water may not suit superheated fluid or sudden cooling. Confirm minimum and maximum temperatures, cycling frequency, and fluid compatibility. For outdoor lines, consider freezing, sunlight, and brittle seal behavior. Document the values, then have a qualified engineer review unusual duty. Small details matter. After installation, recheck torque and leakage under controlled conditions.
Choose the Right Actuation and End Connection Type
Choosing the right ball valve starts with matching actuation to the application. A manual lever works well for occasional isolation and simple layouts. For frequent cycling, pneumatic or electric actuators reduce operator effort. Pneumatic units suit fast movement, while electric units offer controlled positioning. Check the required torque carefully. A small actuator may stall under pressure.
End connections also deserve close attention. Threaded ends are practical for compact, low-maintenance systems, but they need accurate alignment. Flanged ends simplify removal and inspection on larger pipelines. Welded ends provide a strong, permanent joint, though installation requires skilled preparation. Sanitary systems may need clamp connections for quick cleaning. Always compare pipe size, pressure rating, temperature, and material compatibility with verified technical documents. A valve can look correct and still fail early.
Tips:
Confirm the fail-safe position before ordering. Choose spring-return actuation when loss of air or power creates a safety concern. Measure available space around the handle or actuator. I have seen installations where the valve worked, but nobody could reach it. That detail is easy to miss. Also, review the sealing material against the process fluid, since chemical compatibility often matters more than purchase price. When uncertain, ask for torque calculations and connection standards in writing. The right choice is rarely the most impressive one.
Check Standards, Maintenance Needs, and Total Ownership Cost
Choosing a ball valve starts with the applicable standards, not the lowest quotation. Check pressure ratings, temperature limits, materials, leakage classes, and end connections. Standards such as ISO and API may apply, but requirements vary by industry and region. Confirm the latest edition with a qualified engineer or inspector.
Maintenance needs are easy to underestimate. A valve in a clean water line may need little attention, while one handling abrasive slurry requires frequent inspection. Look for accessible packing, replaceable seats, clear position indicators, and documented service procedures. During selection, ask who will isolate the line, how long repairs may take, and whether spare parts can be stored safely. Small details matter. A failed actuator can stop an entire process.
Total ownership cost includes purchase price, installation, energy use, downtime, inspection, and disposal. A cheaper valve may need early seal replacement or more frequent shutdowns. Estimate labor hours and lost production, not only component costs. For example, a valve requiring two technicians and four hours for servicing can become expensive over several years. Keep a simple maintenance log with operating pressure, leakage observations, and repair dates. It will reveal patterns, although records are often incomplete. That gap deserves attention before making a final choice.
