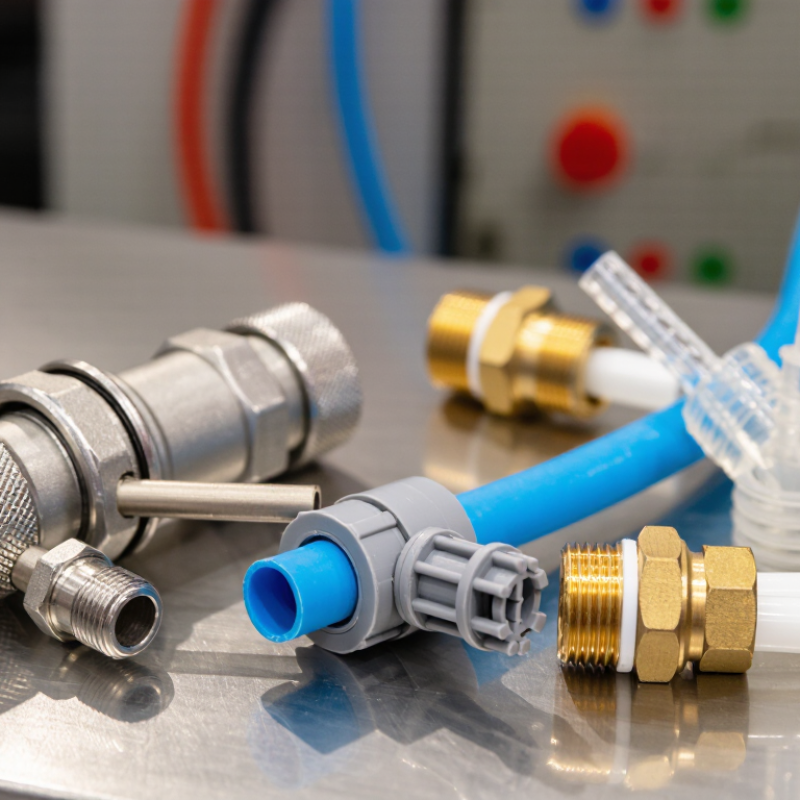

What Are Tubing Connectors and How Do They Work?
Tubing connectors are small components with a major role in fluid and gas systems. They join flexible or rigid tubes while helping maintain a controlled flow path. In medical equipment, laboratory instruments, automotive systems, and industrial machinery, a poor connection can cause leaks, pressure loss, contamination, or equipment failure.
Different designs solve different problems. Compression fittings grip tubing with a ferrule, while barbed connectors hold soft tubing through friction. Push-to-connect models use an internal collet for quick installation. Threaded connectors create a more rigid joint, often with sealant or a gasket. The correct choice depends on tubing size, material, pressure, temperature, chemical exposure, and maintenance requirements. Small details matter.
Installation affects performance just as much. A clean, square tube cut creates better contact inside the fitting. Over-tightening may damage threads or deform soft tubing. Under-tightening can leave a slow leak that appears hours later. In practical testing, technicians often inspect joints visually, then check them under operating pressure. Never assume a dry surface proves a secure connection.
No connector suits every application. That is easy to forget. Material charts and manufacturer specifications provide a safer starting point than appearance alone. However, real systems may include vibration, repeated movement, or temperature changes that basic charts cannot fully predict. This guide explains how tubing connectors work, compares common designs, and considers their limitations. It also encourages careful verification, because reliable performance depends on both component selection and human judgment.
What Tubing Connectors Are and Why They Are Used
Tubing connectors are small components that join flexible or rigid tubes without interrupting the intended flow. They are used to carry air, water, fuel-free process fluids, or other compatible media through a controlled pathway. Common designs include push-to-connect fittings, compression fittings, barbed connectors, and threaded adapters. Each style suits different tubing materials, pressures, and maintenance needs.
Their main purpose is reliable connection. A good connector helps prevent leaks, supports the tube, and allows inspection or replacement when needed. Selection should match the tube’s inner or outer diameter, pressure rating, temperature range, and chemical compatibility. A connector that fits physically may still fail in service. That detail is easy to miss.
Cut the tube squarely. Remove dust and sharp edges. Push-fit systems usually need the tube inserted fully, while compression fittings require careful tightening. Excessive force can deform the tube or damage the sealing surface. During workshop assembly, a visible insertion mark can help confirm that the tube has reached the correct depth. For air systems, a controlled leak test can reveal bubbles around the joint. For liquid systems, inspect slowly under safe operating conditions.
Installation quality matters as much as connector design. Tubes should not be sharply bent beside the fitting, because side loads can loosen the joint over time. It is also worth checking seals after heat, vibration, or repeated disassembly. These practical checks may seem unnecessary, yet small connection failures often begin with rushed preparation or an almost-correct fit.
The Main Parts and Designs of Tubing Connectors
What Are Tubing Connectors and How Do They Work?
The Main Parts and Designs of Tubing Connectors
Tubing connectors join flexible or rigid tubes while controlling leaks, pressure, and movement. Their design usually includes a connector body, sealing element, gripping ring, and tightening nut. The body forms the flow passage. The seal closes the small gap between the tube and connector. The gripping ring holds the tube against pressure and vibration.
Compression connectors use a nut and ferrule. As the nut tightens, the ferrule presses firmly around the tube. Push-to-connect designs use an internal collet and seal. The tube enters quickly and locks in place. Barbed connectors have ridges that grip soft tubing, often with an external clamp. Flared designs create a metal-to-metal sealing surface and suit higher-pressure applications.
Material selection requires practical judgment. Stainless steel can handle demanding temperatures and corrosive environments, while engineered plastics reduce weight and electrical conductivity. The tubing material must also match the seal. A seal that performs well with water may swell when exposed to oils or cleaning chemicals. That detail is easy to miss.
Installation quality matters as much as connector design. Cut tubing squarely. Remove burrs. Insert it to the marked depth. Hand-tightening alone may leave a hidden leak, but excessive force can damage the seal. After assembly, I recommend a controlled pressure test and a careful inspection around every joint. No connector is completely foolproof. Even experienced installers sometimes overlook tube scratches or slight misalignment.
How Tubing Connectors Join and Secure Tubes
What Are Tubing Connectors and How Do They Work?
How Tubing Connectors Join and Secure Tubes
Tubing connectors are small components that join, redirect, or terminate flexible and rigid tubes. Threaded, compression, barbed, and push-to-connect designs serve different purposes. Each design grips the tube through friction, mechanical pressure, or a sealing ring. Compression fittings use a nut and ferrule to squeeze the tube against the fitting body. Barbed connectors hold tubing through raised ridges inside the tube. Push-to-connect fittings use internal teeth and an O-ring for quick installation. The connection may look simple, but small errors can cause leaks.
In practical assembly, preparation matters as much as connector choice. Check the tube’s outside diameter before selecting a fitting. Cut the tube squarely. Remove burrs and dirt. Push-to-connect tubing must enter fully past the seal. Compression tubing should remain straight while tightening. Hand-tightening is often insufficient, but excessive force can deform the tube. Use a suitable wrench carefully. Do not rely on appearance alone.
A reliable installation also considers pressure, temperature, vibration, and chemical compatibility. Inspect the seal for cuts, flattening, or hardening. Pull the tube gently after assembly. It should resist movement without twisting. I have seen a secure-looking joint leak after temperature changed. The problem was an incorrect seal, not the connector itself. That mistake is easy to repeat. Test the assembled line gradually, using appropriate safety controls and the fitting’s rated limits. Check again after operation begins, especially near vibrating equipment.
Common Materials and Connector Types
What Are Tubing Connectors and How Do They Work?
Tubing connectors join flexible or rigid tubes while controlling flow, pressure, and leakage. Their material determines chemical resistance, flexibility, durability, and sterilization performance. PVC remains common because it is economical and easy to process. Silicone handles repeated bending and high-temperature sterilization well. Polyurethane offers strong abrasion resistance, while PTFE performs reliably with aggressive chemicals. For demanding mechanical applications, PEEK and stainless steel provide greater strength, but usually at higher cost.
Connector design matters just as much as material. Barbed connectors grip soft tubing through raised ridges, often with clamps for added security. Luer connectors support precise, low-volume connections in fluid systems. Compression fittings create a seal by tightening a ferrule around the tube. Quick-disconnect types save time during maintenance, although their internal valves can restrict flow. T-connectors and Y-connectors divide or combine pathways. Small details matter.
According to Grand View Research’s medical tubing market analysis, the global market was valued at more than USD 8 billion in 2023, with continued growth expected through 2030. This expansion increases demand for dependable connection systems. In practice, a connector that fits by hand may still leak after heat exposure, vibration, or repeated cleaning. Pressure ratings also depend on temperature, tube hardness, and installation quality. A catalog value is not a complete safety assessment. Engineers should verify dimensional tolerance, fluid compatibility, sterilization method, and pull-out strength under actual operating conditions. Mistakes often begin with choosing by size alone.
How to Select, Install, and Maintain Tubing Connectors
Tubing connectors join flexible or rigid tubes while controlling pressure, flow, and direction. They may use compression, push-to-connect, or threaded designs. Selection starts with the tube’s outside diameter, working pressure, temperature range, and transported medium. Check chemical compatibility carefully. A fitting suitable for dry air may fail with oil, steam, or aggressive cleaning fluids. Material, vibration, and corrosion also matter. ISO 4414 recommends safe pneumatic design, including suitable connection methods and protection against unexpected hose movement.
Installation should begin with a clean, square tube cut. Remove burrs, then insert the tube fully into the connector. For compression fittings, tighten according to the manufacturer’s specified turns or torque. Over-tightening can distort the tube. Under-tightening can create a slow leak. A connector can look secure and still fail under pressure. Pressure-test the assembly gradually, never suddenly. The U.S. Department of Energy reports that compressed-air leaks can waste 20–30% of system output, so small connection faults deserve attention. My practical view is simple: a leak test is cheaper than repeated troubleshooting.
Tips:
Mark inserted tube depth before installation. Keep spare seals sealed and clean. Inspect joints for moisture, hissing, discoloration, or movement during routine checks. Retightening should not replace finding the real cause. Vibration, heat cycling, and incorrect tubing often return as repeat failures. Review connectors after maintenance, because even careful work is not always perfect. Record inspection dates and pressure-test results for reliable future decisions.
