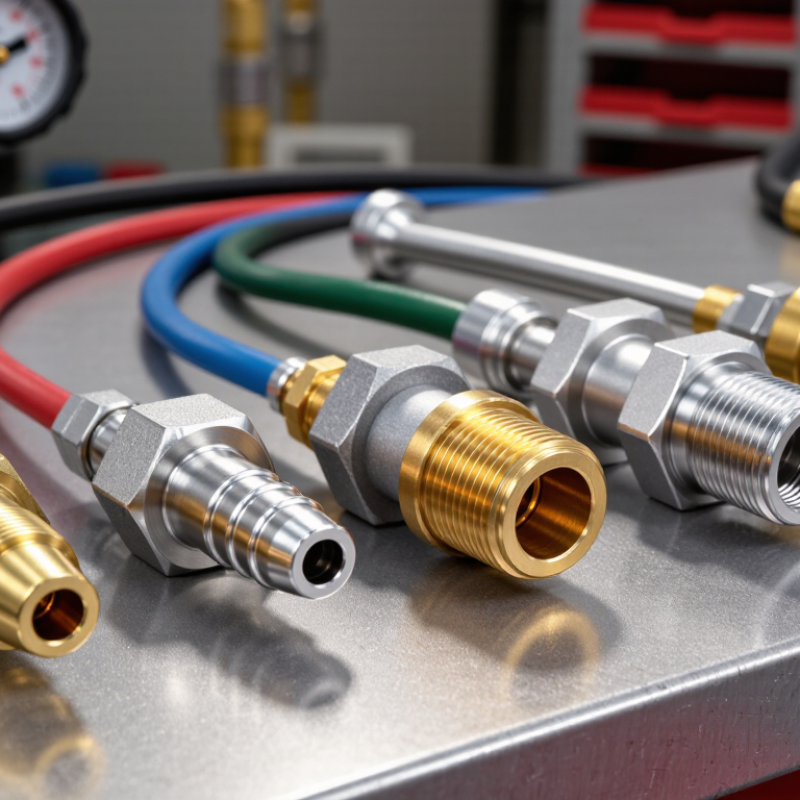

What Are the Top Types of Fuel Fittings?

Choosing the right fuel fittings begins with understanding how fuel systems actually behave. Temperature changes, vibration, pressure, and chemical exposure can affect every connection. A fitting that looks suitable may still leak, loosen, or deteriorate over time. Details matter.

This guide examines the top types of fuel fittings, including flare fittings, compression fittings, push-to-connect designs, banjo fittings, and threaded adapters. Each type serves a different purpose. Flare fittings commonly support secure metal-to-metal connections. Compression fittings can simplify installation when compatible tubing is used. Push-to-connect fittings may save time, but they demand careful inspection and correct tube preparation.

Material selection is equally important. Brass, stainless steel, aluminum, and approved polymer components offer different strengths. Stainless steel may suit demanding environments, while brass can provide practical corrosion resistance. Compatibility should never be guessed. Always check the manufacturer’s specifications, fuel type, pressure rating, temperature range, and thread standard.

A small mismatch can create a serious problem. It happens more often than people admit. During inspection, look for damaged threads, flattened seals, cracked tubing, and signs of staining near joints. A clean connection is not automatically a reliable one.

The best choice depends on the vehicle, equipment, tubing, and service conditions. Professional guidance remains valuable, especially when access is limited or the system operates under pressure. This overview offers a practical starting point, not a substitute for technical documentation. Some applications are less straightforward than they appear, and that deserves careful reflection before installation.

What Are the Top Types of Fuel Fittings?
Table of Contents [Hide]
1 What Are Fuel Fittings and Why Are They Important?
2 How Are Fuel Fittings Classified by Design and Function?
3 What Are the Main Types of Fuel Fittings?
4 How Do You Choose the Right Fuel Fitting for Your System?
5 What Safety Standards Apply to Fuel Fittings?

What Are Fuel Fittings and Why Are They Important?

Fuel fittings connect tanks, pumps, filters, injectors, and fuel rails. They control how fuel moves through a vehicle or machine. Common types include threaded fittings, compression fittings, flare fittings, and quick-connect couplings. Each design suits different pressure, temperature, and maintenance needs.

Small parts matter. A fitting must seal against vibration, heat, and chemical exposure inside a crowded engine bay. A loose thread can create a dangerous leak. An incorrect O-ring may swell, harden, or fail without warning. The U.S. Energy Information Administration reported that petroleum supplied roughly 90% of transportation energy in 2023. That figure shows why dependable fuel-system hardware remains important across road, marine, and industrial equipment. SAE J30 provides performance guidance for fuel and oil hose materials, while FMVSS 301 addresses fuel-system integrity during vehicle crashes. These standards do not make every fitting safe automatically. Installation still matters. In field inspections, technicians should check thread compatibility, sealing surfaces, hose support, and signs of abrasion. A fitting that looks clean may still be unsuitable for modern fuel blends. This is where simple visual judgment becomes unreliable. Pressure ratings and material compatibility deserve written verification. One overlooked detail can matter.

How Are Fuel Fittings Classified by Design and Function?

What Are the Top Types of Fuel Fittings?

Fuel fittings are classified by design and function, not appearance alone. Straight fittings connect aligned hoses, while elbows redirect flow through tight engine spaces. Tees split one fuel route into two. Adapters join different thread standards or connection types. Quick-connect fittings support faster service, but they require precise locking and seal inspection.

Function creates another useful classification. Compression fittings rely on a sleeve and nut. Barb fittings grip flexible hose with raised ridges and clamps. Flare fittings form a metal-to-metal seal for higher vibration resistance. Push-to-connect fittings use an internal seal and retaining ring. SAE J2044 defines several automotive fuel-system connection requirements, including retention and leakage control. These details matter because a small seal defect can become a serious maintenance issue.

Tips: Match the fitting with hose material, pressure, temperature, and fuel chemistry. Check thread size twice. A visual match is not enough. OICA reported 93.5 million motor vehicles produced worldwide in 2023, showing the scale of fuel-system hardware use. The IEA recorded nearly 14 million electric-car sales in 2023, so fuel-fitting demand is changing unevenly across regions. That trend deserves caution. Some classifications still overlook hybrid vehicles, where fuel and electrical systems share limited packaging space. Always verify the service manual and the applicable standard before installation.

What Are the Main Types of Fuel Fittings?

Fuel fittings connect tanks, pumps, filters, rails, and flexible lines. Their design affects sealing, service life, and fuel flow. The main types include threaded, flare, compression, quick-connect, and banjo fittings.

Threaded fittings use male and female threads, often with a sealing washer or approved sealant. Flare fittings seal through shaped metal surfaces, rather than ordinary thread contact. They suit many high-pressure applications when correctly matched.

Compression fittings grip tubing with a nut and ferrule. They are practical for some low-pressure lines, but vibration can expose poor installation. Quick-connect fittings use an internal seal and locking mechanism. They make filter replacement faster, although dirt inside the connector can cause leaks.

Banjo fittings use a hollow bolt and compact circular body. They work well where space around a fuel pump or injector is limited.

Material compatibility matters as much as fitting shape. Fuel-resistant metals and seals should match the fuel type, pressure, temperature, and hose material. A fitting may look perfect and still fail after repeated heat cycles.

A common workshop mistake is mixing thread standards or reusing a crushed sealing washer. That small shortcut can create a slow, difficult-to-find leak.

Before installation, relieve system pressure, clean every mating surface, and check the service specifications. Tighten fittings to the stated torque, not by instinct. I would also inspect the joint after the first operating cycle, because a dry connection during assembly is not proof of lasting reliability.

How Do You Choose the Right Fuel Fitting for Your System?

What Are the Top Types of Fuel Fittings?

Choosing the right fuel fitting begins with the system, not the fitting’s appearance. Common options include hose-barb, compression, flare, threaded, and quick-connect fittings. Each type suits different pressures, temperatures, and installation conditions. A hose-barb fitting needs a properly sized fuel-rated hose and a secure clamp. Compression fittings work well with rigid tubing but require careful tightening. Flare fittings can provide reliable sealing when the flare angle matches the connection. Small details matter.

A practical inspection should check fuel compatibility, operating pressure, temperature range, and tube diameter. Always confirm the fitting material can resist the fuel and surrounding moisture. Stainless steel, plated metal, and approved polymer fittings may perform differently in harsh environments. Thread size alone is not enough. Some threads look similar but use different sealing methods.

Tips: Measure the hose and tube before ordering. Check whether the joint seals on threads, a flare, or an O-ring. Keep fittings away from sharp edges and excessive heat. Do not force a mismatched connection. It may appear secure, then leak under vibration. Follow applicable technical standards and the equipment manufacturer’s instructions.

One common mistake is choosing a fitting based only on price. A cheaper part may need frequent retightening or replacement. I would also inspect the connection after initial operation, because installation errors are easy to miss. A clean, dry surface makes leaks easier to detect. When the application is uncertain, consult a qualified technician and document the fitting specifications.

What Are the Top Types of Fuel Fittings? - How Do You Choose the Right Fuel Fitting for Your System?

Fuel Fitting Type Typical Connection Method Common Materials Typical Applications Main Advantages Key Selection Considerations
Flare Fittings Metal tube is flared against a matching cone; commonly uses a threaded nut. Steel, stainless steel, aluminum, and brass Fuel lines, brake-related fluid circuits, hydraulic systems, and vibration-prone tubing Reliable metal-to-metal seal; suitable for many rigid tubing installations; no separate sealant is normally required on the flare surface. Match the flare angle and tube outside diameter. Do not mix incompatible flare standards, such as different angle or thread systems.
Compression Fittings A ferrule is compressed between the fitting body and nut to grip and seal the tube. Brass, stainless steel, and plated steel Low- to medium-pressure fuel lines, instrumentation, and serviceable tubing connections Simple installation with basic tools; does not require tube flaring or welding. Use only with compatible tubing and fuel. Correct tightening is essential because over-tightening can deform the tube or ferrule.
Barbed Hose Fittings Barbed shank inserted into flexible hose and secured with an appropriate clamp. Brass, stainless steel, aluminum, and fuel-compatible engineering plastics Low-pressure flexible fuel hoses, return lines, vent lines, and small-engine fuel systems Cost-effective and easy to assemble; works well with flexible hose when properly clamped. Select a barb size that matches the hose inside diameter. Confirm hose, fitting, and clamp compatibility with the fuel and temperature range.
Push-to-Connect Fittings Compatible tubing is pushed into an internal collet and sealing element. Engineering plastics, brass, stainless steel, and elastomer seals Fuel vapor, air, and selected low-pressure fuel applications where the fitting is specifically rated for the service Fast assembly and convenient disconnection; reduces installation time. Use only fittings explicitly approved for the fuel type. Verify tubing tolerance, pull-out resistance, seal material, and operating temperature.
Quick-Disconnect Couplings Male and female halves lock together with a sleeve, latch, or valved mechanism. Plated steel, stainless steel, aluminum, brass, and fuel-compatible polymers Removable fuel tanks, service equipment, test systems, and modular fuel assemblies Allows rapid connection and disconnection; some designs reduce leakage by incorporating automatic shut-off valves. Check flow direction, pressure rating, shut-off configuration, seal compatibility, and whether the coupling is designed for liquid fuel or vapor service.
Threaded Pipe Fittings Tapered or parallel male and female threads, sometimes used with a sealant or sealing washer. Steel, stainless steel, brass, aluminum, and approved polymers Fuel pumps, filters, tanks, manifolds, regulators, and fixed piping sections Widely available in many sizes and configurations; suitable for rigid equipment connections. Identify the thread standard, gender, size, and sealing method. Sealant must be compatible with the fuel and must not enter the fuel passage.
Swivel Fittings A rotating joint combined with a flare, hose, compression, or threaded connection. Steel, stainless steel, aluminum, and brass Engine compartments, mobile equipment, fuel rails, and installations requiring easier hose or tube routing Improves alignment and reduces twisting during installation; can help manage limited space. Confirm that the swivel joint is rated for continuous movement, vibration, pressure, temperature, and the specific fuel environment.
Bulkhead Fittings Passes through a panel or tank wall and is secured with a nut, washer, or lock mechanism. Stainless steel, aluminum, brass, and fuel-compatible polymers Fuel tanks, partitions, enclosures, and equipment panels Creates a controlled connection through a wall while maintaining panel support and routing flexibility. Check wall thickness, hole diameter, gasket or seal material, torque requirements, and resistance to vibration and fuel exposure.
Banjo Fittings A hollow bolt passes through a compact eye-shaped fitting, usually sealed with washers. Steel, stainless steel, aluminum, and brass Fuel pumps, carburetors, injectors, and locations with restricted clearance Compact design allows the hose or tube to exit at a selected angle; useful where radial space is limited. Use the specified sealing washers and bolt type. Verify bolt length, port size, orientation, torque, and pressure rating.

Selection should be based on fuel type, pressure, temperature, tube or hose size, vibration, installation space, applicable safety requirements, and the compatibility of all wetted materials and seals. Always follow the fitting and equipment manufacturer’s published specifications.

What Safety Standards Apply to Fuel Fittings?

Fuel fittings must withstand more than ordinary pressure. They face vibration, heat, fuel additives, and sudden impact. SAE J2044 specifies performance requirements for quick-connect fuel couplings, including retention, sealing, and dimensional control. These details matter when a connector sits beside a hot engine or moves slightly during service.

Crash safety is governed differently. In the United States, FMVSS No. 301 evaluates fuel-system integrity after defined crash conditions, with strict limits on post-impact leakage. NHTSA’s compliance framework treats the complete fuel system as a safety unit, not an isolated fitting. UNECE Regulation No. 34 follows a similar fire-prevention principle for approved vehicle designs. Requirements vary by market, so one test report may not prove global compliance.

Good practice includes pressure cycling, pull-off testing, thermal aging, and fuel-compatibility checks. ASTM D471 can help assess elastomer changes after fluid exposure, while SAE J30 is commonly referenced for fuel-hose performance. A fitting that passes a bench leak test may still fail after vibration and repeated temperature changes. That assumption is too comfortable.

Inspectors should verify material certificates, lot traceability, locking features, and installation orientation. Small details matter. Sharp bends can load the joint. Poorly seated seals can leak slowly before detection. In my view, standards provide the baseline, but documented testing and practical inspection make the result more reliable.

What Are the Top Types of Fuel Fittings? What Safety Standards Apply?

Fuel fittings commonly include quick-connect couplings, hose barbs, flare fittings, compression fittings, and threaded adapters. The chart shows how major automotive and marine references relate to each fitting type. The relevance index is practical guidance: 0 means the reference is not the primary scope, 1 means it provides system or interface context, and 2 means it directly addresses the connection or fitting category.

SAE J2044 focuses on automotive fuel-system quick-connect couplings. SAE J30 and ISO 7840 primarily address fuel-hose performance and hose assemblies, so their relevance depends on the hose-to-fitting interface. SAE J512 covers automotive tube-fitting categories, while FMVSS 301 addresses vehicle-level fuel-system integrity rather than certifying an individual fitting. Always verify the exact application, fuel type, pressure, temperature, material compatibility, and applicable local regulations.
