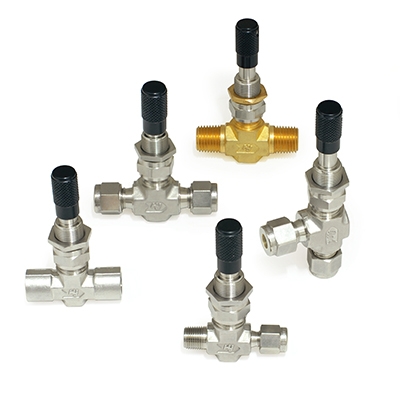

MT1 Series – Metering Valves

Applications

Instrumentation, General Service, Sampling System

Technical Drawings

To request GA- and/or 3D- drawings (.step) please contact sale@dialoguetoolkit.com.

Downloads

Catalog (pdf)

Instruction & Operation Manual (pdf)

Assembly Torque (pdf)

Features

• Forged Body
• In-Line or Angle pattern
• Stainless Steel, Brass
• Metal to Metal Seat
• Wide flow range with ultrafine metering control (1° or 3° Stem)

Specifications

• Maximum Operating Pressure:
  5000psig(345bar) @ 100℉(38℃)
• Operating Temperature Range:
  -65℉(-54℃) to 450℉(232℃)
